Chapter 26. Использование ItemFactories

Иерархия наследования

Object +--- ItemFactory
А теперь пример. Объяснения и комментарии следуют.
26.1. Пример Factory Example


#!/usr/bin/perl -w

use
Gtk
;
use
strict
;

set_locale Gtk;
init Gtk;


my
 $false = 0;

my
 $true = 1;

# Эта the GtkItemFactoryEntry структура используется для генерации новых меню..
# Запись может включать в себя следующие пункты.
# Item 1: path - Местонахождение пункта в меню. Буква после подчеркивания указывает на
#         на клавишу быстрого вызова, этого пункта после открытия меню.
# Item 2: The accelerator key for the entry
# Item 3: The callback function.
# Item 4: The callback action.  This changes the parameters with
#         which the function is called.  The default is 0.
# Item 5: The item type, used to define what kind of an item it is.
#         Here are the possible values:
#          NULL               -> "&lt;Item>"
#          ""                 -> "&lt;Item>"
#          "&lt;Title>"          -> create a title item
#          "&lt;Item>"           -> create a simple item
#          "&lt;CheckItem>"      -> create a check item
#          "&lt;ToggleItem>"     -> create a toggle item
#          "&lt;RadioItem>"      -> create a radio item
#          &lt;path>             -> path of a radio item to link against
#          "&lt;Separator>"      -> create a separator
#          "&lt;Branch>"         -> create an item to hold sub items (optional)
#          "&lt;LastBranch>"     -> create a right justified branch


my
 @menu_items = ( { path        => '/_File',
		     type        => '<Branch>' },
		   { path        => '/File/_New',
		     accelerator => '<control>N',
		     callback    => \&print_hello },
		   { path        => '/File/_Open',
		     accelerator => '<control>O',
		     callback    => \&print_hello },
		   { path        => '/File/_Save',
		     accelerator => '<control>S',
		     callback    => \&print_hello },
		   { path        => '/File/Save _As' },
		   { path        => '/File/sep1',
		     type        => '<Separator>' },
		   { path        => '/File/Quit',
		     callback    =>
sub
 { Gtk->
exit
( 0 ); } },

		   { path        => '/_Options',
		     type        => '<Branch>' },
		   { path        => '/Options/Test' },

		   { path        => '/_Help',
		     type        => '<LastBranch>' },
		   { path        => '/_Help/About' } );


my
 $window;

my
 $main_vbox;

my
 $menubar;


# Create the window
$window = new Gtk::Window( 'toplevel' );
$window->signal_connect( 'destroy',
sub
 { Gtk->
exit
( 0 ); } );
$window->set_title( "Item Factory" );
$window->set_usize( 300, 200 );

$main_vbox = new Gtk::VBox( $false, 1 );
$main_vbox->border_width( 1 );
$window->add( $main_vbox );
$main_vbox->show();

# Create the menu bar
$menubar = create_menu_bar( $window );
$main_vbox->pack_start( $menubar, $false, $true, 0 );
$menubar->show();

$window->show();
main Gtk;

exit
( 0 );




### Subroutines

# Obligatory basic callback


sub

print_hello

{

print
( "Hello World!\n" );
}


# Crete the menu bar, initialize its menus, and return the menu bar.


sub

create_menu_bar

{

my
 ( $window ) = @_;


my
 $menubar;

my
 $item_factory;

my
 $accel_group;

   $accel_group = new Gtk::AccelGroup();

   # This function initializes the item factory.
   # Param 1: The type of menu - can be 'Gtk::MenuBar', 'Gtk::Menu',
   #          or 'Gtk::OptionMenu'.
   # Param 2: The path of the menu.
   # Param 3: The accelerator group.  The item factory sets up
   #          the accelerator table while generating menus.
   $item_factory = new Gtk::ItemFactory( 'Gtk::MenuBar',
					 '<main>',
					 $accel_group );

   # This function generates the menu items. Pass the item factory,
   # the number of items in the array, the array itself, and any
   # callback data for the the menu items.
   $item_factory->create_items( @menu_items );

   # Attach the new accelerator group to the window.
   $window->add_accel_group( $accel_group );

   # Finally, return the actual menu bar created by the item factory.
   #*menubar = gtk_item_factory_get_widget (item_factory, "&lt;main>");

return
 ( $item_factory->get_widget( '<main>' ) );
}


# END EXAMPLE PROGRAM

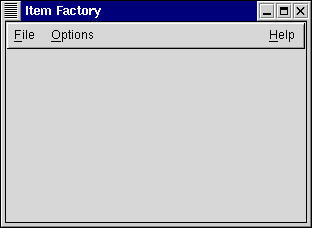

Item Factory Example Screenshot
